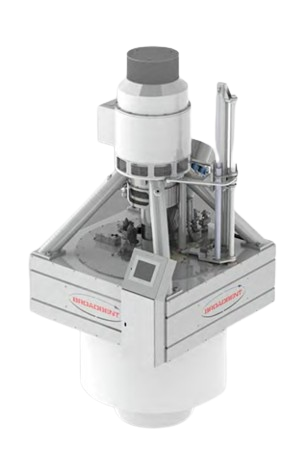

BROADBENT NEW CL/CLX Model BATCH SUGAR CENTRIFUGAL
Broadbent offers a wide range of batch centrifuges to suit all applications in the sugar, dextrose and sweetener industries. They offer a combination of mechanical simplicity, cleanliness, crystal dryness and full crystal removal. Where high throughputs and class-leading yields on high purity are required, Broadbent batch centrifuges are the answer.
Special variants are also available for the chemical industry to process citric acid, nitrates, and other free filtering crystalline materials.
STANDARD FEATURES
Simple robust mechanical design reducing maintenance time and costs.
Centrifuge design has been optimised to improve stability when processing variable massecuites.
Excellent for use in refineries; clean lines, no complex mechanisms located above the basket, reducing the possibility of contamination.
Compact design with low headroom requirements.
High performance drive systems available for up to 28 charges per hour.
Drive motor options: Standard industrial TEFC induction motor (CLX), or Broadbent direct coupled motor (CL).
Fully automatic advanced PC & PLC control systems allowing easy integration with the plant DCS.
Programmable cleaning system keeps the centrifuge clean and reduces water consumption.
CL/CLX RANGE OF BATCH CENTRIFUGES
| Model | Basket Capacity kg* | Cycles Per Hour* | Max G | Max Capacity Tonnes/HR* |
|---|---|---|---|---|
| CL / CLX1400 | 1400 | 28 | 1100 | 39.0 |
| CL / CLX1800 | 1800 | 28 | 1100 | 50.4 |
| CL / CLX2300 | 2300 | 28 | 1000 | 64.4 |
*Dependent on massecuite properties and motor inverter rating selected.
#Design subject to change without notice.
Talk to our centrifugal specialists
Get sizing, configuration and commissioning support for the Broadbent CL/CLX batch centrifugal.
