Overview

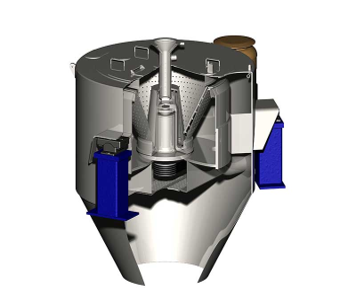

Broadbent SPV Continuous Centrifugal are high-capacity industrial centrifuges used in sugar mills to continuously separate sugar crystals from molasses during the sugar production process. Unlike batch centrifugal, which operate one cycle at a time, continuous centrifugal process massecuite in a nonstop flow, making them suitable for large-scale sugar refining operations.
Advantages of using Broadbent SPV Continuous Centrifugal give an Effective separation with a Low Purity Rise at High Sustainable Throughputs.
SPV Continuous Sugar Centrifugal Range
| Model | Nominal Basket Dimension | Maximum Speed (RPM) | Maximum Separating Force (G) | Maximum Motor Power (KW) |
|---|---|---|---|---|
| SPV1220 | 1220MM | 2,050 | 2,850 X G | 75 KW |
| SPV1425 | 1425MM | 1,800 | 2,500 X G | 110 KW |
| SPV1575 | 1575MM | 1,600 | 2,250 X G | 132KW |
SPV Continuous Sugar Centrifugal Capacities
Capacities – T/Hour
| Model | Capacities – T/Hour | |||||
|---|---|---|---|---|---|---|
| Beet | Cane | Refinery | ||||
| Intermediate Grade | Low Grade | 'B' Massecuite | 'C' Massecuite | Affination | Recovery | |
| SPV1220 | 25 | 17 | 20 | 15 | 25 | 15 |
| SPV1425 | 40 | 22 | 30 | 20 | 40 | 20 |
| SPV1575 | 48 | 28 | 36 | 25 | 48 | 25 |
Broadbent Continuous Centrifuges can be supplied with optional features:
Feed And Isolation Valves, Automatically Controlled
Special Screen Configuration to optimise Process Results
Stainless Steel Outer Casing
All stainless-steel contact parts
High And Low Purity Liquor Separation Within Casing
Facilities To Connect to Factory DCS System
Wedge Wire Screens for Extremely Long Life
Technical Highlights
Maximum Speed
Maximum Separating Force
Maximum Motor Power
Need Technical Consultation?
Our engineering team can help identify the most suitable Broadbent SPV Continuous Centrifugal solution for your sugar processing operation.
